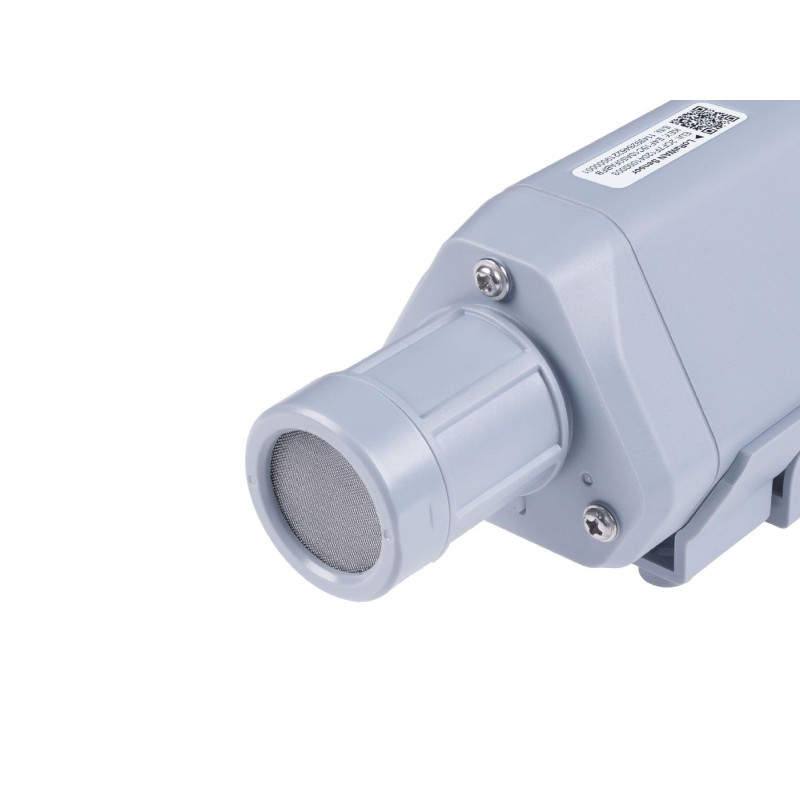

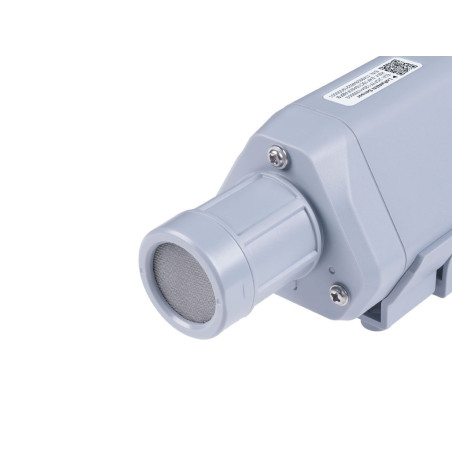

A battery-powered IP66 wireless air temperature and humidity sensor, range from -40°C to 85°C and 0 to 100 %RH, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management. Used in smart farming, smart yard, smart city, and smart cold chain solutions.

Specification

Air Temperature
Range	-40 to +85 °C
Accuracy	±0.2 °C
Resolution	0.01 °C
Long-term Drift	<0.03 °C/year
Air Humidity
Range	0 to 100%RH
Accuracy	±1.8 %RH
Resolution	0.01 %RH
Long-term Drift	<0.25 %RH/year
General Parameters
Product Model	S2101
Microcontroller	Wio-E5
Support Protocol	LoRaWAN v1.0.3 Class A
Built-in Bluetooth	App Tool to change parameters
LoRaWAN Channel Plan	IN865/EU868/US915/AU915/ AS923/KR920/RU864 *
Max Transmitted Power Sensitivity	19dBm
Sensitivity	-136dBm@SF12 BW=125KHz
Communication Distance	2 to10km (depending on gateway antenna and environments)
IP Rating	IP66
Operating Temperature	-40 to +85 °C
Operating Humidity	0 to 100% RH (non-condensing)
Device Weight	280g
Certification	CE / FCC / RoHS
Battery (Contained in equipment)
Battery Life	Up to 10 years**
Battery Capacity	19Ah (non-rechargeable)
Battery Type	Standard D-size SOCl2 Battery
